Understanding Voltage Polarity

1. What Exactly Is Voltage Polarity, Anyway?

Alright, let's tackle this voltage polarity thing. Imagine voltage like a water pump in a closed loop of pipes. The pump creates a pressure difference that makes the water flow. Similarly, voltage is the electrical "pressure" that pushes electrons through a circuit. Polarity, in this analogy, tells us which way the "pressure" is oriented. It essentially defines which end of a component or circuit is at a higher electrical potential (the positive end) and which is at a lower potential (the negative end).

Think of it like a hill. Objects roll downhill from a higher elevation to a lower one. Electrons, in an electrical circuit, flow from a point of higher potential (more negative) to a point of lower potential (more positive). The difference in potential is what we call voltage, and polarity simply says, "This is the top of the hill, and that's the bottom." It's all about direction!

Without polarity, we wouldn't know which way the electrons are supposed to be moving. It's like trying to assemble furniture without instructions. You might eventually get something that resembles a chair, but it probably won't be very sturdy, or functional, or maybe even look like a chair at all. In electronics, incorrect polarity can lead to components not working correctly, or worse, getting damaged. Oops!

It is important to note that voltage does have polarity. Polarity is an inherent characteristic of voltage. Recognizing and respecting polarity is crucial for safe and effective circuit design and troubleshooting. It's not just a suggestion; it's a fundamental rule of the electrical game.

Does A Capacitor Have Polarity? ElectronicsHacks

AC vs. DC

2. How Polarity Differs in Alternating and Direct Current

Now, things get a bit more interesting when we consider alternating current (AC) versus direct current (DC). With DC, like from a battery, the polarity is constant. The positive terminal is always positive, and the negative terminal is always negative. The electrons flow in one direction only. Nice and predictable!

But with AC, such as the electricity that comes out of your wall socket, the polarity switches back and forth many times per second. In the US, it's typically 60 times a second (60 Hz), while in Europe it's 50 times a second (50 Hz). This means the "positive" and "negative" ends are constantly swapping places. It's like an electrical seesaw!

Does this mean AC voltage doesn't have polarity? Not exactly. At any instant in time, an AC voltage does have a defined polarity. It's just that the polarity is constantly changing. That rapid change is what makes AC suitable for long-distance power transmission using transformers. Transformers love changing voltages, and AC provides the perfect environment for them to do their thing.

While the polarity in AC is constantly shifting, it's still a crucial concept to understand. It affects how AC circuits behave and how different components interact with AC signals. Think of it as a dance — the polarity is the beat, and the electrons are the dancers following the rhythm.

Challenge Circuit 12 Transformer Polarity

Why Polarity Matters

3. Consequences of Ignoring Polarity

So, why should you care about all this polarity stuff? Well, ignoring polarity can have some pretty nasty consequences. For example, if you connect a DC power supply to a circuit with the polarity reversed, you could damage sensitive components like LEDs or integrated circuits. LEDs, for instance, are like one-way streets for electrons. If you try to force them to flow the wrong way, they simply won't light up — or worse, they'll burn out.

Another common example is with electrolytic capacitors. These components are polarized, meaning they have a specific positive and negative terminal. If you connect them backwards, they can overheat and even explode. Trust me, you don't want to be anywhere near an exploding capacitor! It's not a pretty sight (or smell).

Even in AC circuits, polarity considerations are important. For example, when connecting speakers to an audio amplifier, you need to make sure the polarity is correct. If the speakers are wired out of phase (i.e., one speaker is wired with reversed polarity), the sound waves from the speakers can cancel each other out, resulting in a weak or distorted sound. It will sound like your favourite song suddenly has a weird underwater remix.

Therefore, always double-check the polarity markings on components and circuits before making any connections. It's a simple precaution that can save you a lot of headaches (and potentially prevent some serious damage).

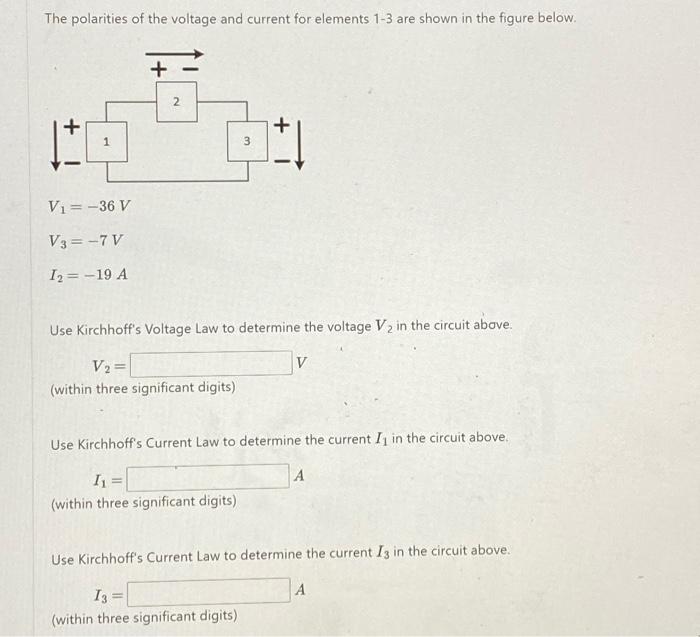

[Solved] The Polarities Of Voltage And Current For Ele

How to Identify Polarity

4. Tools and Techniques for Polarity Detection

Okay, so how do you actually figure out the polarity of a voltage source or component? Fortunately, there are several tools and techniques you can use. The most common tool is a multimeter. A multimeter can measure voltage, current, and resistance, and it usually has a polarity indicator. When measuring DC voltage, the multimeter will show a positive reading if the red probe is connected to the positive terminal and the black probe is connected to the negative terminal. If the probes are reversed, the multimeter will show a negative reading. It's like a little detective helping you solve the polarity puzzle.

Many components also have polarity markings. LEDs, for example, usually have a longer lead indicating the positive terminal (anode) and a shorter lead indicating the negative terminal (cathode). Electrolytic capacitors often have a stripe or other marking indicating the negative terminal. Pay attention to these markings!

Sometimes, you can even determine polarity visually. For example, a battery usually has a "+" symbol on the positive terminal and a "-" symbol on the negative terminal. Power supplies often have similar markings. Its usually labeled pretty clearly to save us some potential issues.

If you are working with an unfamiliar circuit or component, it's always a good idea to consult the datasheet or schematic diagram. These documents will usually provide information about polarity and other important electrical characteristics. Think of it as the instruction manual for your electrical adventures.

Polarity Explained For Kids

Polarity in Digital Circuits

5. How Polarity Influences Digital Logic

Believe it or not, polarity even plays a role in digital circuits, the backbone of computers and other digital devices. In digital logic, voltages represent binary values: a high voltage typically represents a "1," and a low voltage represents a "0." The specific voltage levels used to represent these values can vary depending on the logic family (e.g., TTL, CMOS), but the concept of polarity is still essential.

For example, when designing a digital circuit, you need to ensure that the voltage levels are within the specified operating range of the components. If the voltage is too high or too low, the circuit may not function correctly, or it could even be damaged. Incorrect polarity in power supply connections is an absolute no-no for digital circuits. It can cause permanent damage to the integrated circuits, making them about as useful as a paperweight. And probably a less attractive paperweight, at that.

Moreover, polarity considerations are important when interfacing different digital circuits. For example, if you are connecting a 5V TTL circuit to a 3.3V CMOS circuit, you need to use level shifters to ensure that the voltage levels are compatible. Otherwise, you could damage the CMOS circuit by applying a voltage that is too high. It is important to check that the digital components are operating correctly when voltage polarity are concerned.

So, even in the seemingly abstract world of digital electronics, polarity is a fundamental concept that you can't afford to ignore. Its the silent but crucial language that digital circuits use to communicate.

SIMPLY ELECTRICAL STUDY Some Examples With AC Circuits

Frequently Asked Questions (FAQs)

6. Your Polarity Questions Answered!

Q: Can voltage exist without polarity?
A: Not really. Voltage inherently implies a difference in electrical potential between two points, and that difference defines the polarity. Think of it like a height difference between two mountains you need a "higher" and a "lower" point to have a difference in height.

Q: What happens if I reverse the polarity of a battery in a device?
A: It depends on the device, but potentially bad things! Some devices have protection circuits that prevent damage, but others could be fried. At the very least, the device probably won't work. It is better to avoid at any cost.

Q: Is there a way to change the polarity of a DC voltage source?
A: Yes, you can simply reverse the connections. If you have a battery connected to a circuit, swapping the positive and negative wires will reverse the polarity of the voltage applied to the circuit. Just be careful and make sure it's safe to do so for that particular circuit!

Q: What does "ground" mean in relation to polarity?
A: Ground is a reference point in a circuit, often considered to be at zero potential. While not strictly a "polarity," it acts as the negative reference point for many circuits, allowing other voltages to be defined relative to it.
